S series SjHZS120S
SjHZS120M configuration
1. Characteristics：
1.1. Heavy-duty frame structure with high overall stability;
1.2. Large internal space for easy maintenance;
1.3. negative pressure pulse back blowing dust removal,
sewage reuse, excellent environmental performance;
Applications : It is adapted to ready-mix concrete production.
2. Advantages
2.1 Stable main structure
1. The appearance is harmonious and beautiful, and with large internal maintenance space.
2. Large steel frame main structure, reasonable layout, stable structure.
2.2 Reliable aggregate batching system
2.3 High Efficient mixer
2.4 High precision metering system
2.5 Easy to maintain belt conveyor system
2.6 Air control system with reasonable layout
2.7 High accuracy application technology
Specification
|
No. |
Description |
Item |
Origin |
Qty |
Remark |
|
|
1 |
Aggregates batching system (4 hoppers ground type)) |
Storage hopper |
Janeoo |
4 |
2 vibrator for 2 sand hoppers | |
| Weighing hopper(2000kg±2%) |
Janeoo |
4 |
||||
| cylinder |
SMC |
3x4 |
||||
| Sensor |
Toledo |
3x4 |
||||
| Belt machine(B：1000mm，P:5.5KW) |
Janeoo |
1 |
||||
|
2 |
Inclined belt machine |
Main support |
Janeoo |
1 |
|
|
| Driving device（功率:37kW） |
Janeoo |
1 |
||||
| Belt(B：1000mm) |
Janeoo |
1 |
||||
| Water washing device |
Janeoo |
1 |
||||
|
3 |
Main building |
Main structure（2 layers platform） |
Janeoo |
1 |
|
|
| Discharging hopper |
Janeoo |
1 |
||||
| Bag type filter |
Janeoo |
1 |
||||
| Decoration |
Janeoo |
1 |
||||
|
4 |
mixer |
V:2.0 m3（P:2X37kW） |
Janeoo |
1 |
|
|
| Hydraulic structure |
Janeoo |
1 |
||||
| Centralized lubrication system |
Janeoo |
1 |
||||
|
5 |
Middle hopper |
Storage hopper |
Janeoo |
1 |
|
|
| vibrator |
Janeoo |
1 |
||||
| cylinder |
SMC |
2 |
||||
|
6 |
Cement weighing system |
Weighing hopper（1000kg±1%） |
Janeoo |
1 |
|
|
| sensor |
Toledo |
3 |
||||
| Discharging valve（DN300） |
WAM |
1 |
||||
| vibrator |
Oli |
1 |
||||
|
7 |
Powder weighing system
|
Weighing hopper（400kg±1%） |
Janeoo |
1 |
|
|
| sensor |
Toledo |
3 |
||||
| Discharging valve（DN300） |
WAM |
1 |
||||
| vibrator |
Oli |
1 |
||||
|
8 |
Water weighing system |
Weighing hopper（500kg±1%） |
Janeoo |
1 |
|
|
| sensor |
Toledo |
1 |
||||
| discharging valve (DN150) |
Janeoo |
1 |
||||
| Water pump |
Janeoo |
1 |
||||
| Weighing valve（DN80） |
Janeoo |
1 |
||||
| Weighing pipes |
Janeoo |
1 |
||||
|
9 |
Additive weighing system |
Weighing hopper（50kg±1%） |
Janeoo |
1 |
PE additive tank |
|
| sensor |
Toledo |
1 |
||||
| Discharging valve |
Janeoo |
1 |
||||
| Storage tank（V:10m3） |
Janeoo |
2 |
||||
| Additive pump |
Janeoo |
2 |
||||
| Weighing pipes |
Janeoo |
2 |
||||
|
10 |
Pneumatic system |
Air compressor（displacement:1.6 m3/min） | Atlas |
1 |
|
|
| Sotrage tank 1m3+0.3m3 |
Janeoo |
1 |
||||
| Filter and valve |
SMC |
1 |
||||
|
11 |
Control room |
decoration |
Janeoo |
1 |
|
|
| Air conditioner |
Haier |
1 |
||||
|
12 |
Electrical system |
software |
Janeoo |
1 |
||
| Industrial computer and monitor |
Siemens |
1 |
||||
| UPS power |
Janeoo |
1 |
||||
| Printer |
OKI |
1 |
||||
| Electrical carbin and table |
Janeoo |
1 |
||||
| Main electrical components |
Schneider |
1 |
||||
| Monitoring system（1 monitor+4 cameras） |
Janeoo |
1 |
||||
| Optional | ||||||
|
No. |
Description |
Item |
Origin |
QTY |
Remark |
|
|
13 |
Cement silo |
200t |
Janeoo |
5 |
Cement density 1.35t/m3 |
|
| Maintenance platform |
Janeoo |
1 |
|
|||
|
14 |
Accessoies |
24㎡ filter |
Janeoo |
5 |
|
|
| Safe valve on the top |
Janeoo |
5 |
||||
| Level meter |
Janeoo |
2X5 |
||||
| Arch breaker |
Janeoo |
5 |
||||
| Manual valve |
Janeoo |
5 |
||||
|
15 |

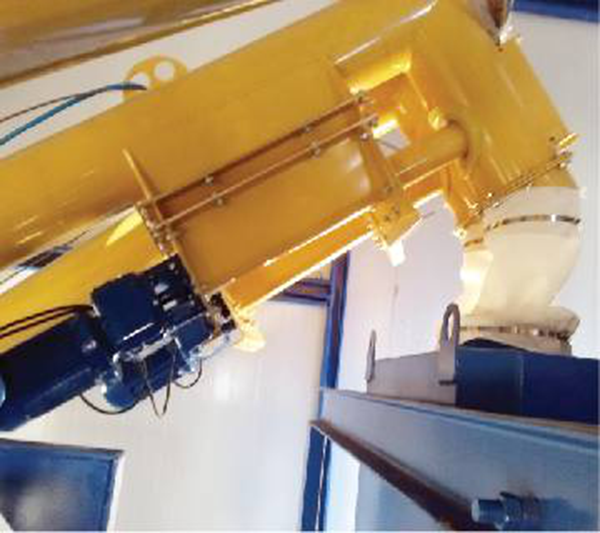

Screw conveyor |
φ273X11m |
Janeoo |
3 |
cement |
|
| φ219X11m |
Janeoo |
2 |
powder |
|||
